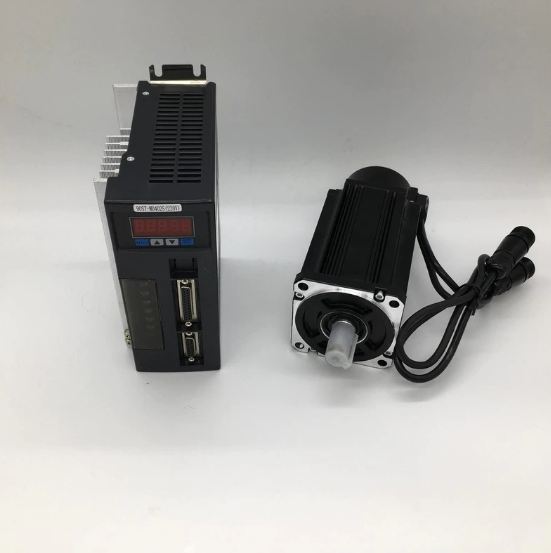

400W NEMA32 Servo Motor
Thích
Muốn
Application Fields:
CNC Machining Equipment, Food processing machine, Material conveying equipment, medical apparatus and instruments, Textile Machinery and so on.
Tips:
* The input voltage is single /three PH 220V (If you need 380V, please contact us)
* Product control mode: Position mode, Speed mode,Torque mode.
* Drive support MODbus communication, support RS232/ RS485 (Default RS485, if you need RS232, please leave us a message)
* The product does not have brakes. If you need to brake, please contact us.
* The length of the cable is 3m. If you need any other length, please contact us.
This product includes:
1 PCS Servo motor
1 PCS drive
1 PCS encoder line
1 PCS Motor line
1PCS 25Pins core and joint
The function of AC servo :
|
The input power |
Single phase or three phase AC220V -15~+10%50/60Hz |
|
|
Control mode |
IGBT PWM sine wave control |
|
|
Control feature |
Speed frequency |
<400HZ |
|
Speed fluctuation ratio |
<plusminus0.3(load0~100%);<plusminus0.2(power supply-15+10%) (Value corresponding to the rated speed) |
|
|
Speed ratio |
1:5000 |
|
|
Impulse frequency |
≤ 500KHZ |
|
|
The encoder feedback |
2500line incremental encoder, 10000ppr |
|
|
Display and operation |
five LED display Four buttons |
|
|
Braking way |
Through the internal ,external braking resistance braking energy |
|
|
Cooling way |
Air cooled (heat transfer film , the strong cold wind fan) |
|
|
Power range |
≤7.5KW |
|
|
Motor Model |
80ST-M01330 |
|
Rated Power(KW) |
0.4 |
|
Rated voltage(V) |
220 |
|
Rated current(A) |
2 |
|
Rated speed(rpm) |
3000 |
|
Rated torque(N. m) |
1.27 |
|
Peak torque(N. m) |
3.8 |
|
Voltage constant(V/1000r/min) |
40 |
|
Torque coefficient(N.m/A) |
0.64 |
|
Rotor inertia (kg.m2) |
1.05*10-4 |
|
Line-Line Resistance( Ω) |
4.44 |
|
Line-Line Inductance(m H) |
7.93 |
|
Electrical time constant(MS) |
1.66 |
|
Size(L) mm |
123 |
